All you need to do is re-pin the wires. No need to extend them. It is best to start with the M34 Plug and then do the M32 Plug.

Re-pinning Instructions

Pinout Reference

  • #20 Red/Yellow —–Move To—— > #49

  • #22 Black —–Move To—— > #59

  • #23 Yellow w/  Red Strip Silver Dots —–Move To—— > #62

  • #24 Orange —–Move To—— > #66

  • #58 orange/Black —–Move To—— > #56

  • #59 Black —-Move To—— > #57

  • #60 Blue —–Move To—— > #58

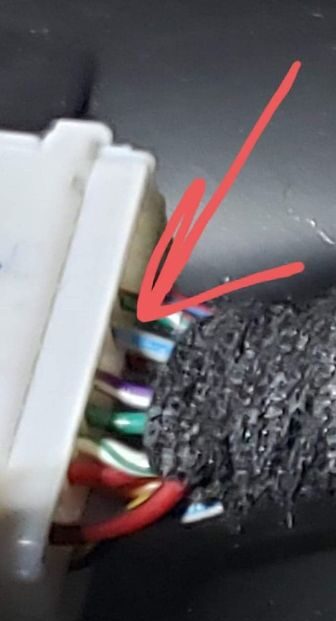

  • #62 Silverish w/ Blue —–Move To—— > #20 (See photo below)

  • #63 Green/ Brown —–Move To—— > #21

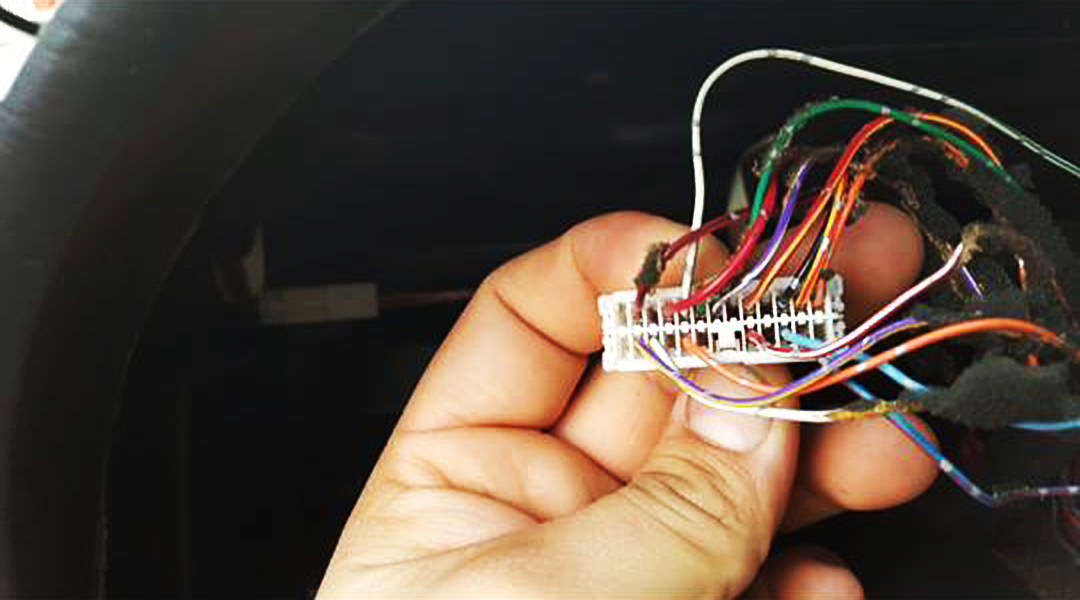

Backside of completed M34 Wiring

Backside of completed M32 Wiring

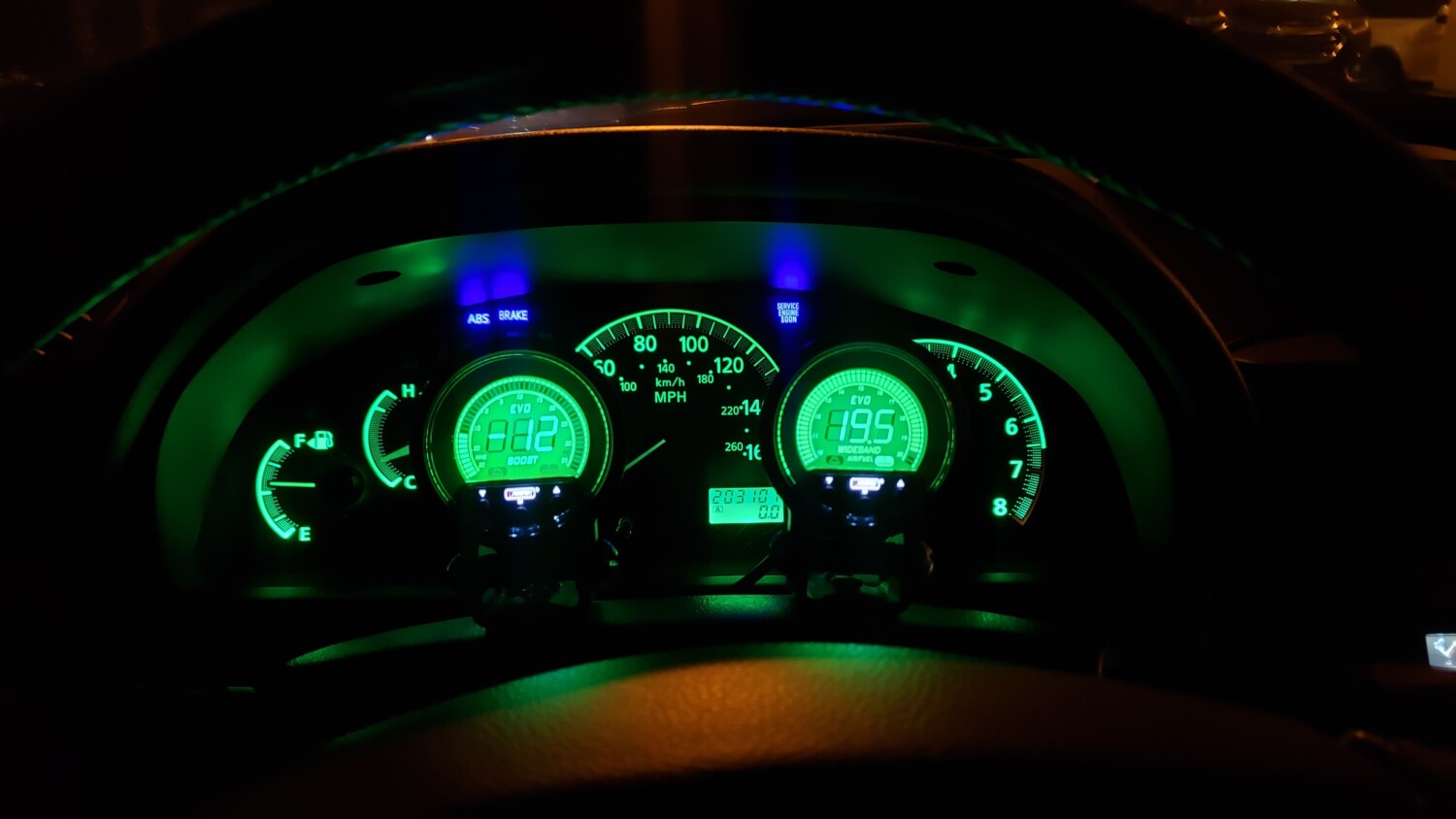

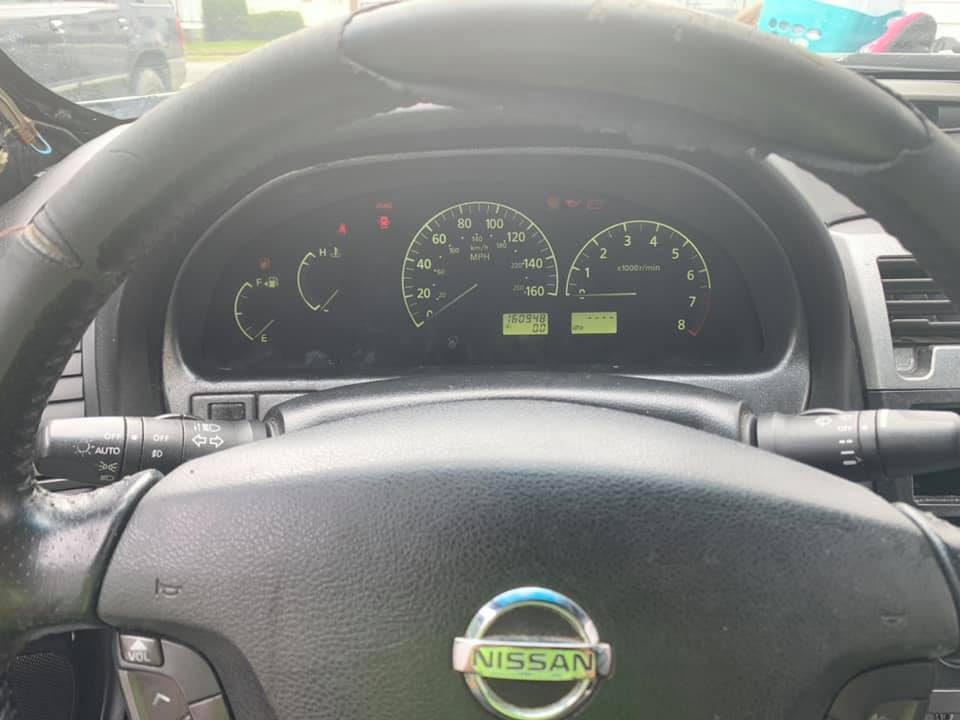

Comparison Wiring

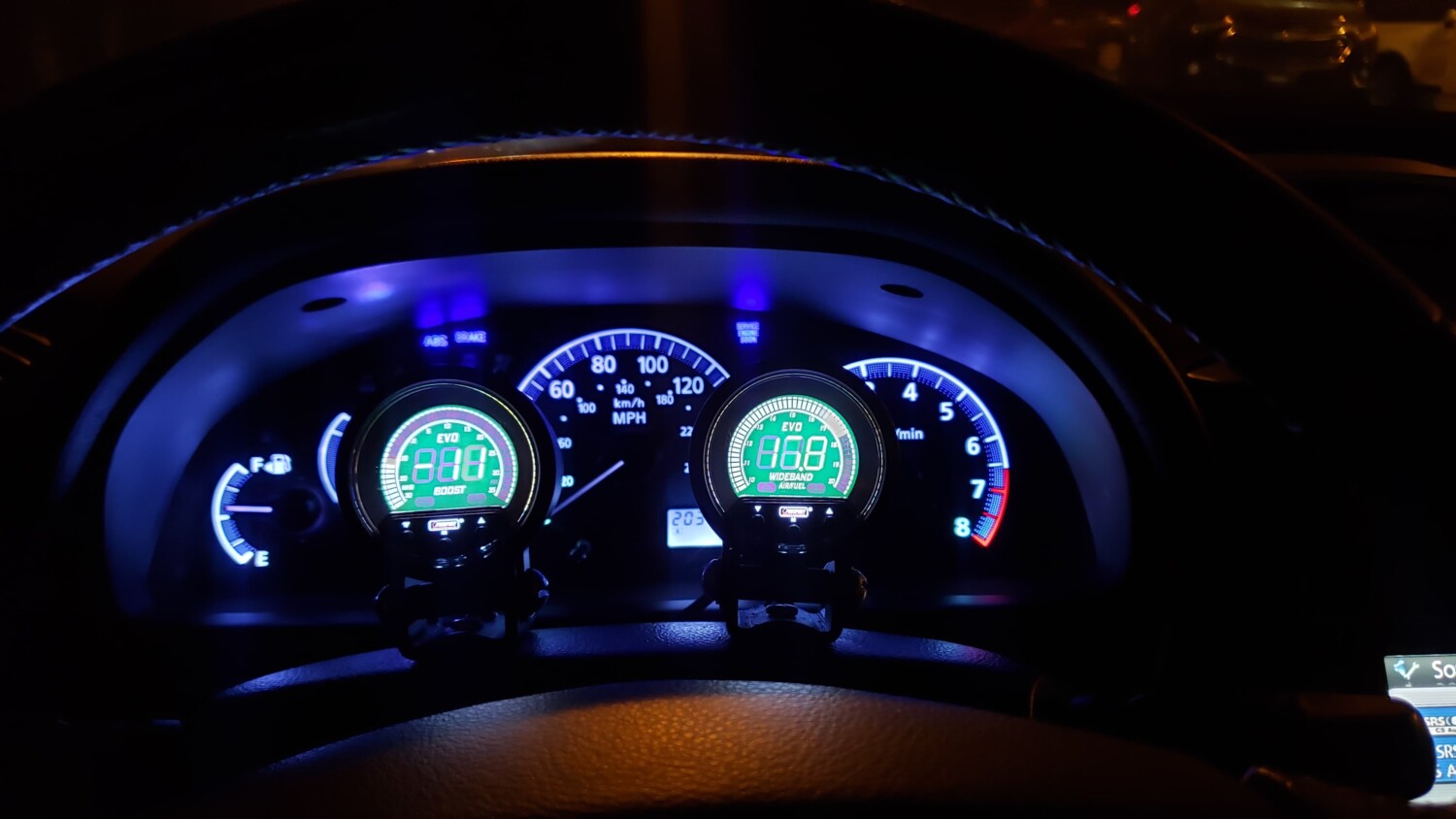

LED Color Swap

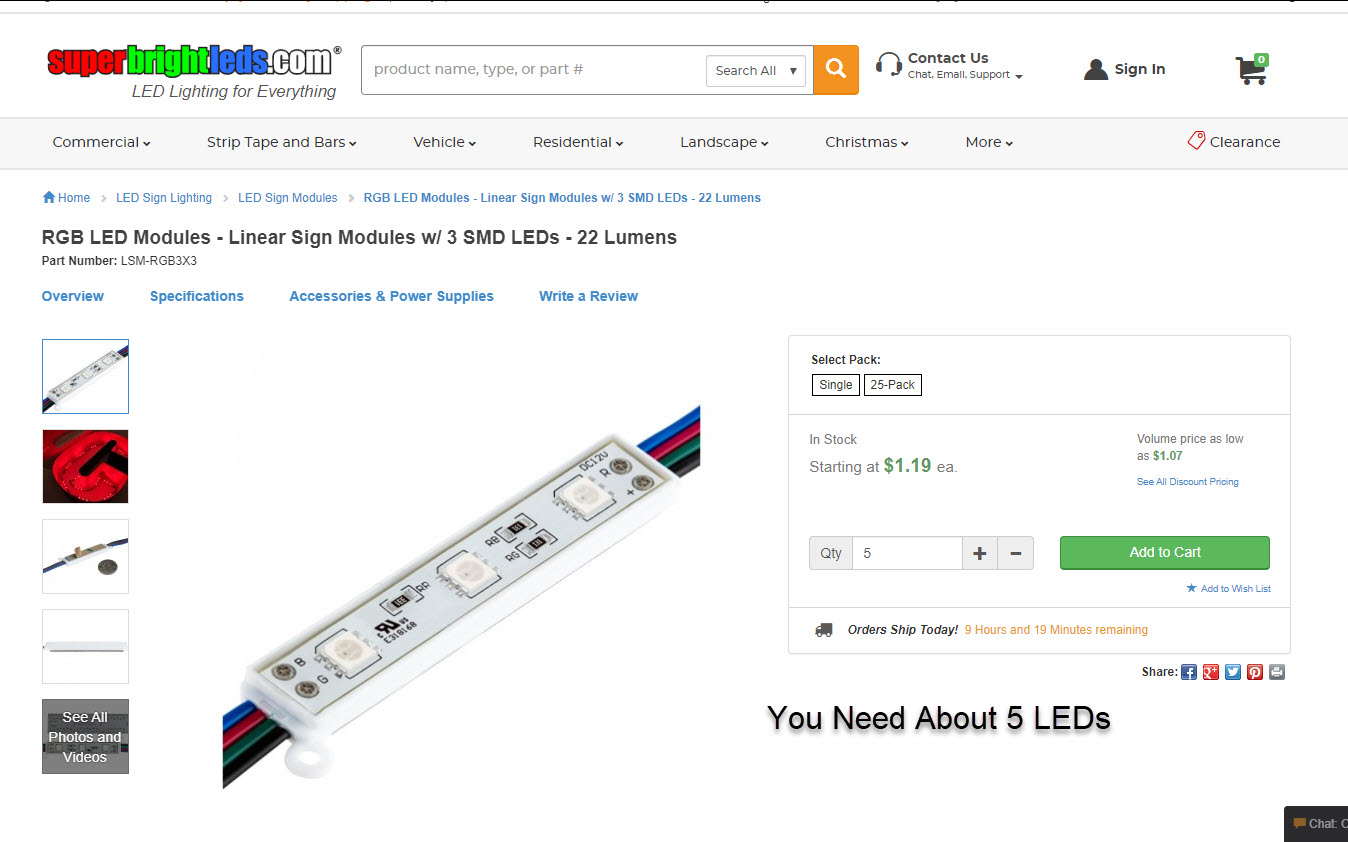

The Infiniti i35 has a single light source which makes it easy to swap to an LED strip. Below is what is commonly used since it allows you change the color as you want. I went with blue but good to have options. I tapped into an ACC power source for the lightening.

You can read more on how to do it here: https://www.my4dsc.com/how-to-add-led-lighting-to-your-infiniti-i35-cluster-for-5thgen-nissan-maxima-2002-2003/
