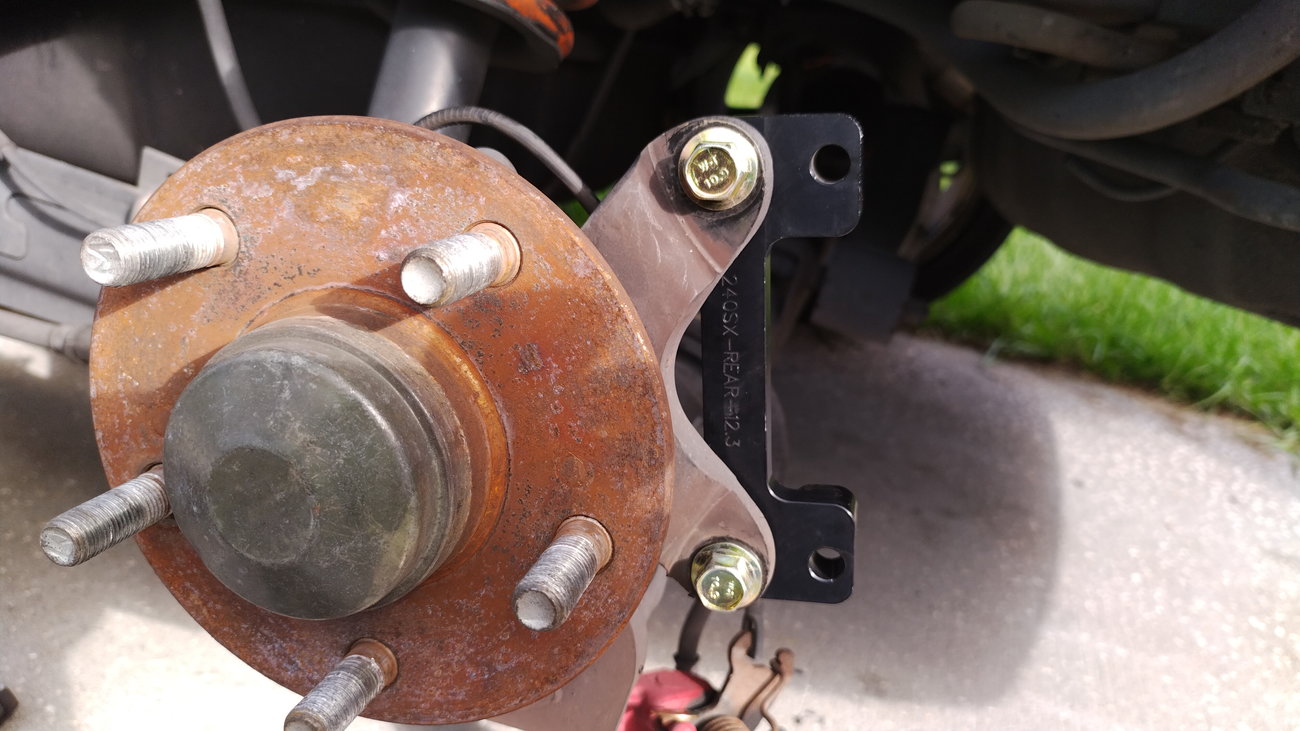

I just installed the Fastbrakes rear brake kit on my 02 SE. between all the parts, machining and the Fastbrakes bracket that I purchased individually, it all came out to $437.07. Fastbrakes bracket was engraved with 240SX-REAR-12.3″ but fit perfect with proper shimming.

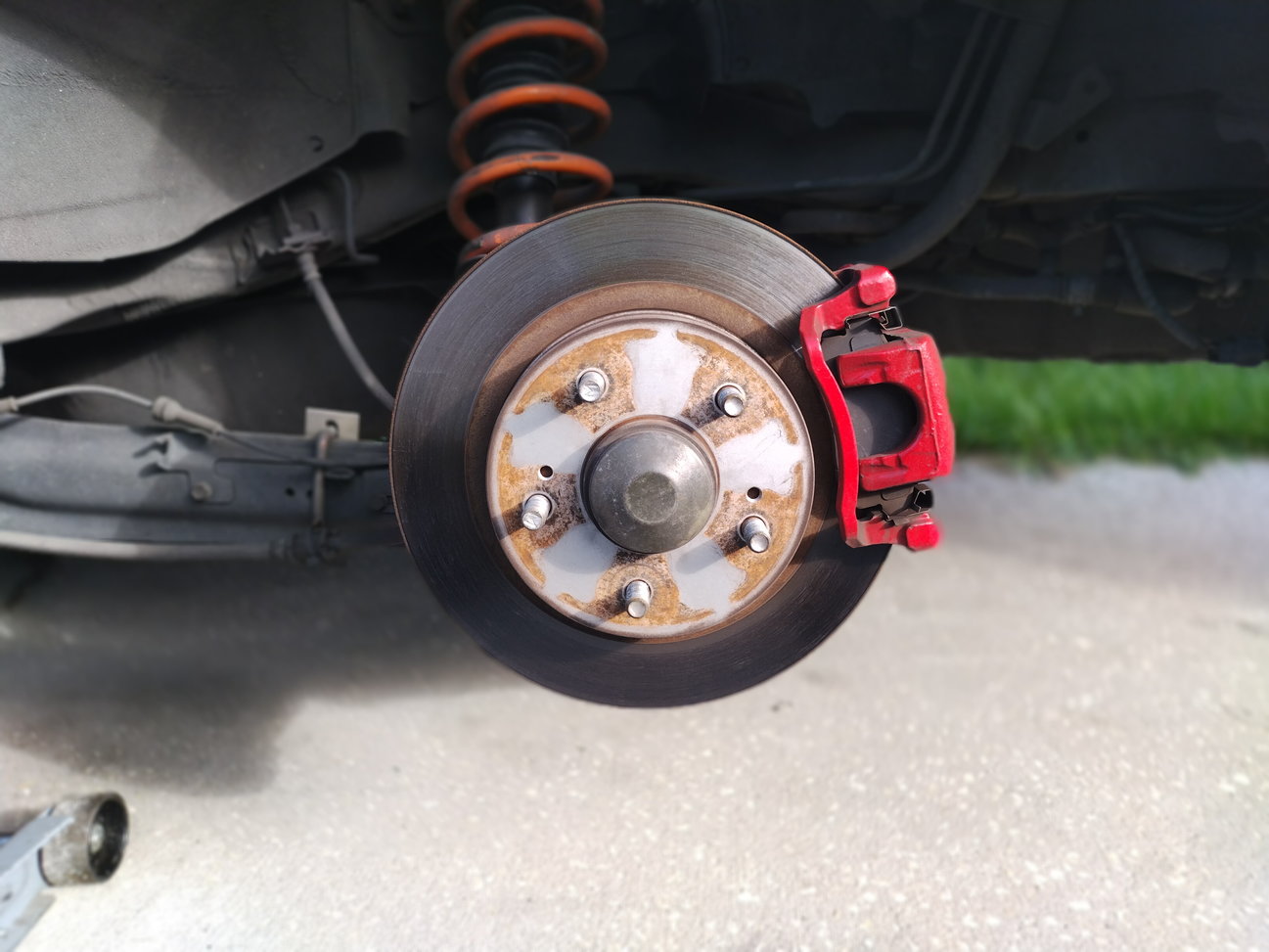

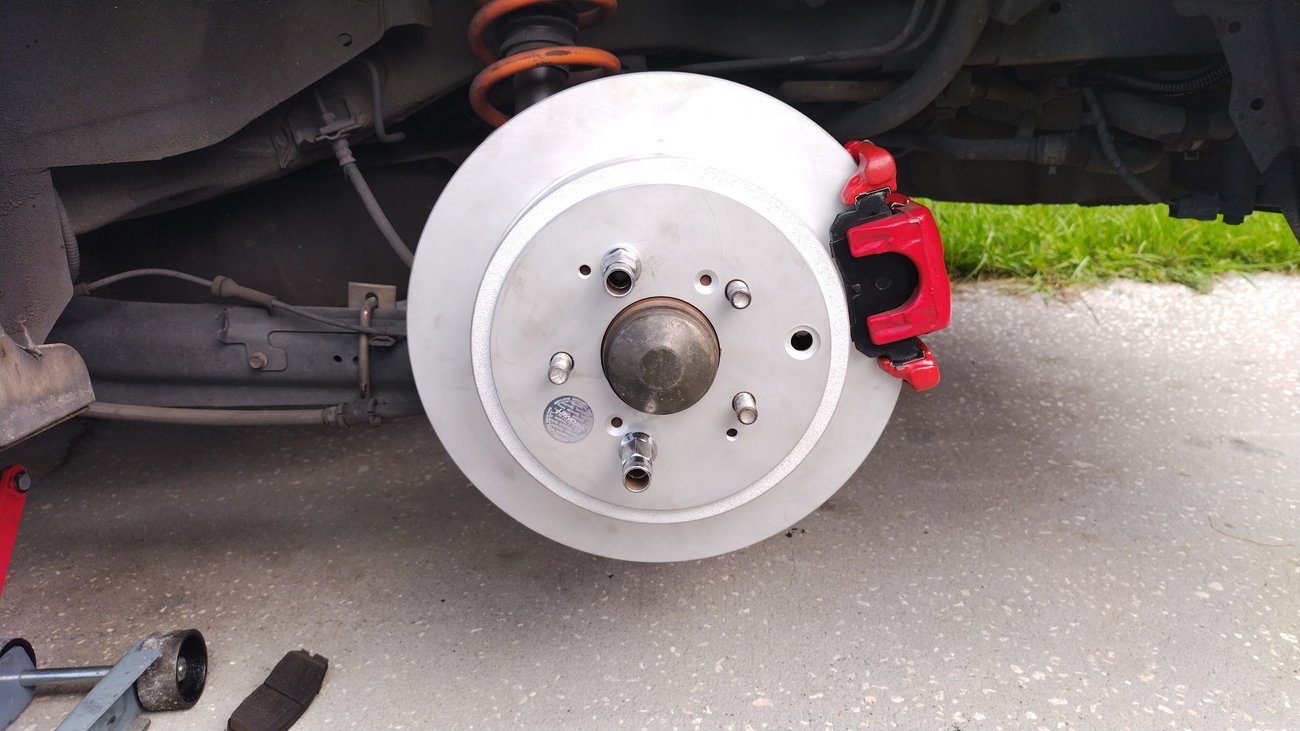

Stock is 278mm ( 10.9″) and the new rotors are 312mm (12.3″) my fronts are 320mm (12.6″) 6th gen brakes.

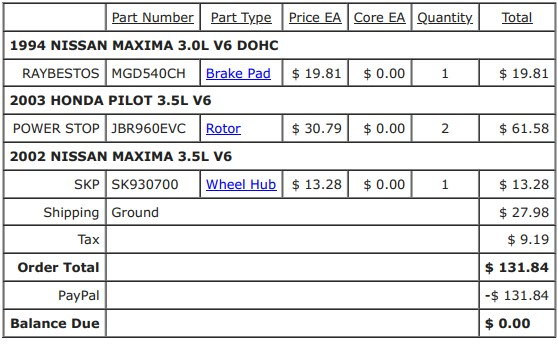

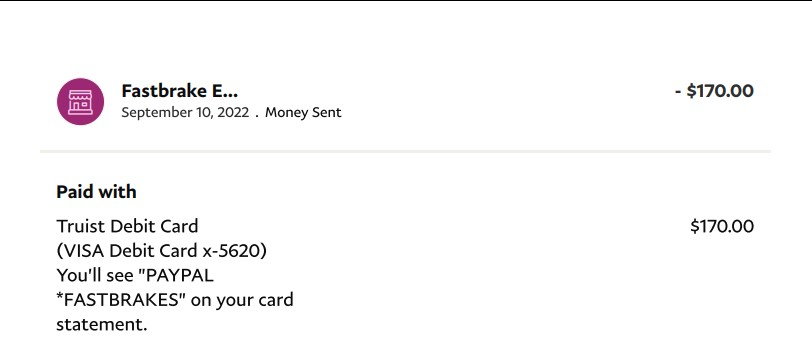

I’ll post up receipt pics. on op top of that, i paid $85 for machine shop to bore the rotor center out and sandblast my 94 caliper brackets for painting. I also ordered a wheel hub for the machine shop to size up the center hub to the rotors….

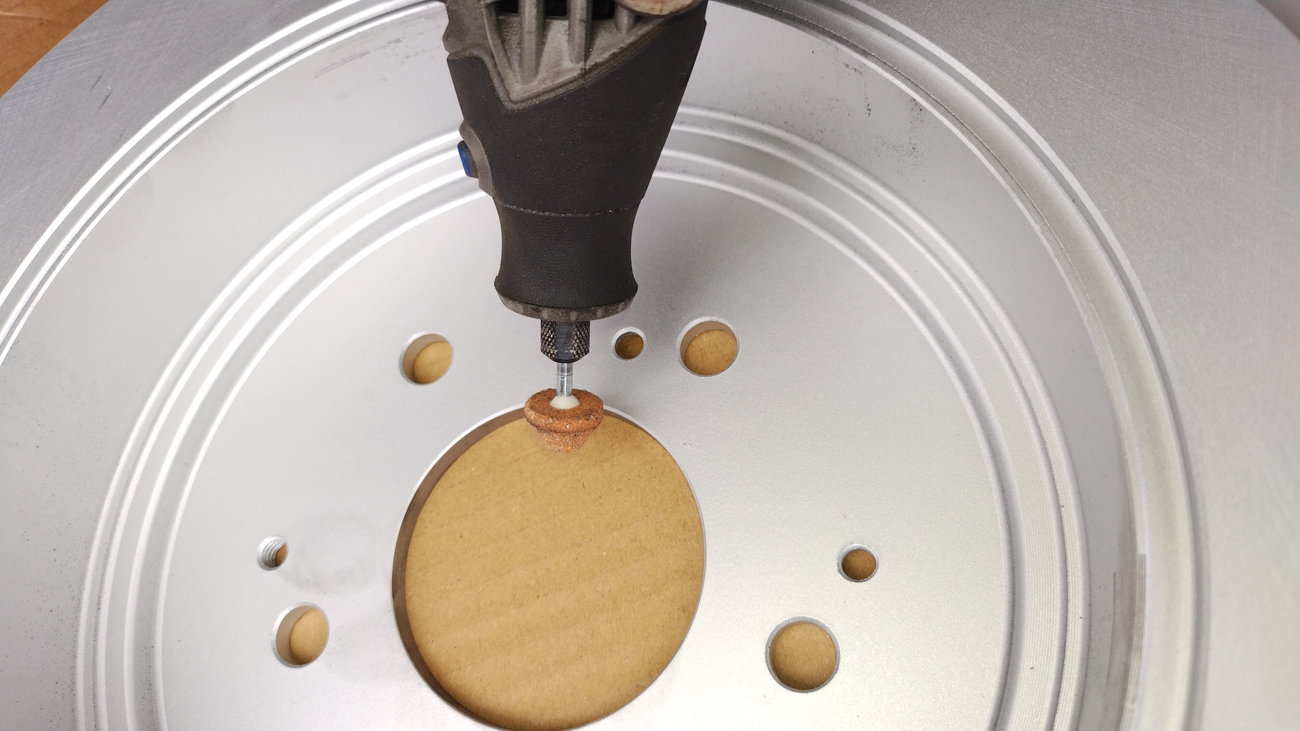

I don’t think the machine shop tested the fit of the rotor on the hub when they machined them. I had to open up the inner part of the bore hole so the rotor would seat properly to the hub.

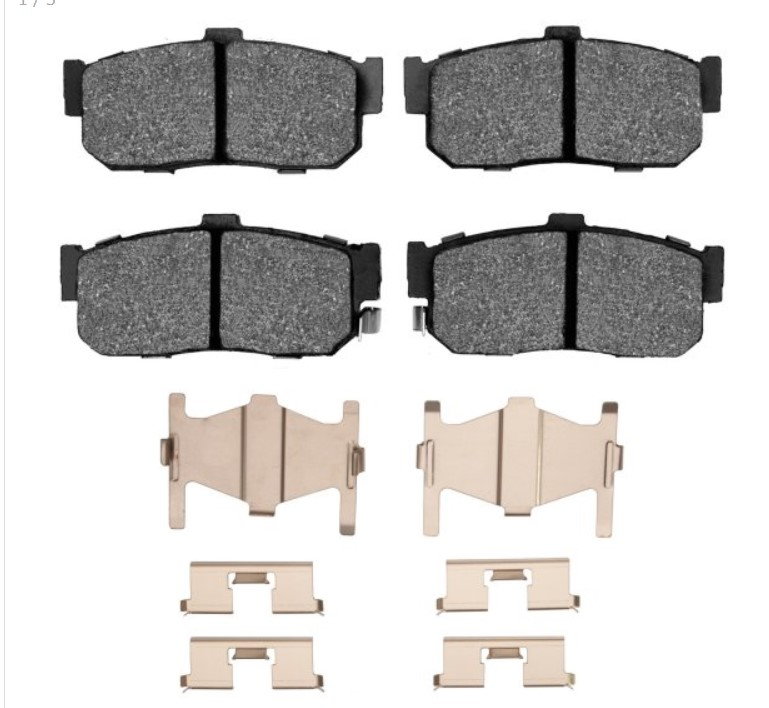

1994 pads are different along with the hardware which will all be used.

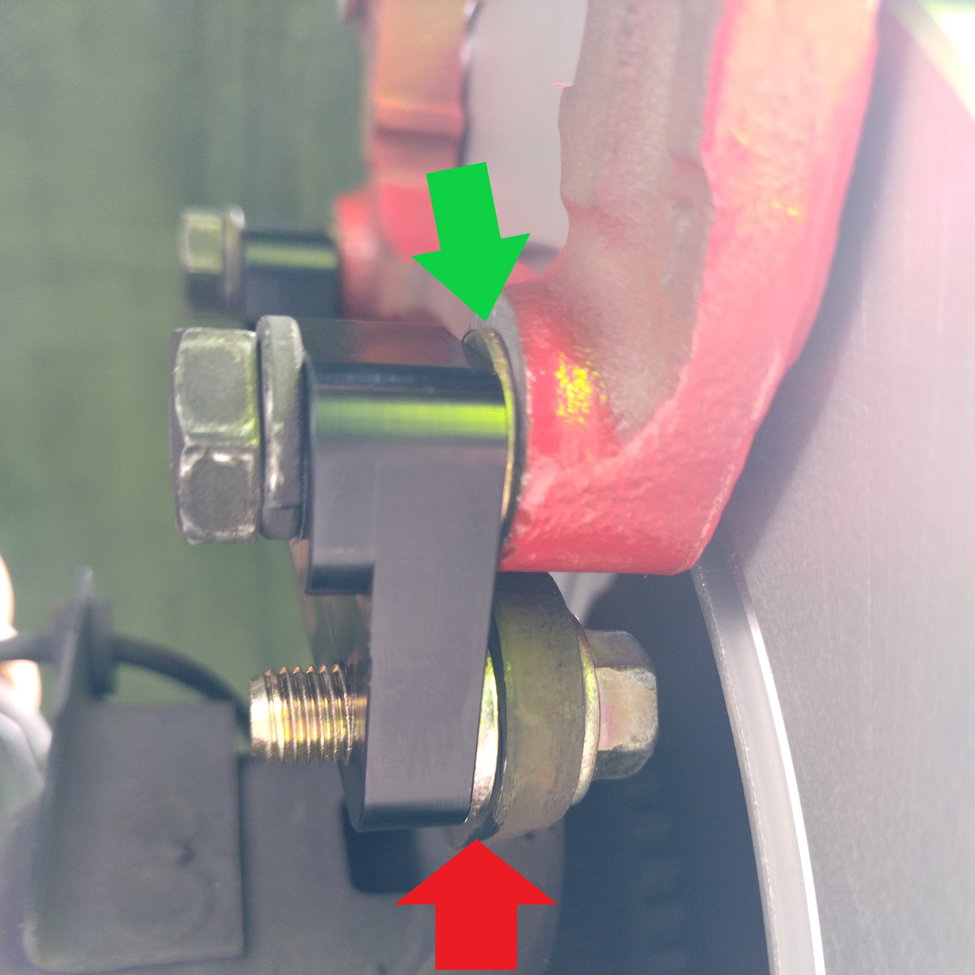

The green arrow is pointing to the washer that was supplied and the red arrow is the 1 of 4 thicker washers that were supplied.
The parking brake cables will have to be unbolted from the trail arm and bolted back on once the parking brake cable is attached back to the caliper…
