Here are DIY instructions on how to replace the OEM seals on your Nissan VQ engine.

At R&D Factory, we service many Nissans and Infiniti’s daily and run into the same valve cover/spark plug o-ring leak. About 75% of the vehicles that we serve have the same problems. Even though it’s money out of customer’s pocket after spending so much money on these valve covers we were thinking there has to be a way to cut the cost so here we are. R&D has come out the kit will come with both driver and passenger side valve cover gasket, six o-ring gaskets, and simple instructions on how to replace them. Your warranty should and will cover leaking valve cover o-rings grommets. we do advise you to check for a leak before your warranty is over…. the whole idea of us making these o-rings grommets were for those who have leaking o-rings grommets yet their warranty is already over. We do drill out the old o-ring grommets with the hole saw size 2 inch. It is slightly bigger than the existing hole and slightly smaller than the o-ring

Part Needed

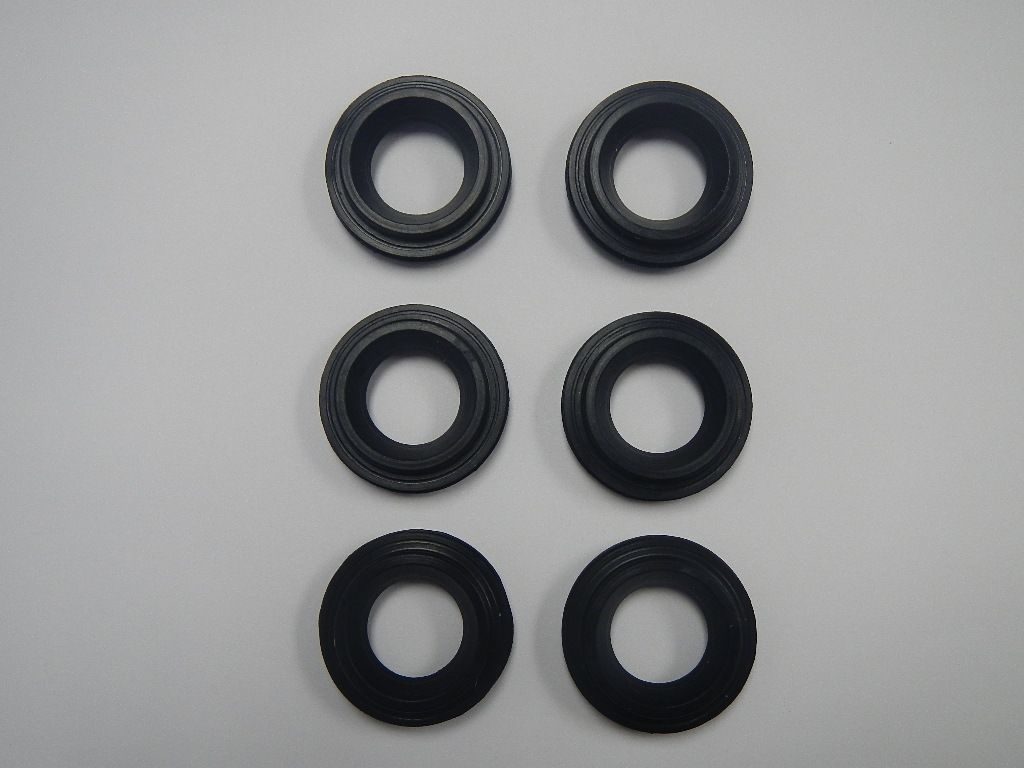

$75 for 6 Grommets (O-ring gasket)

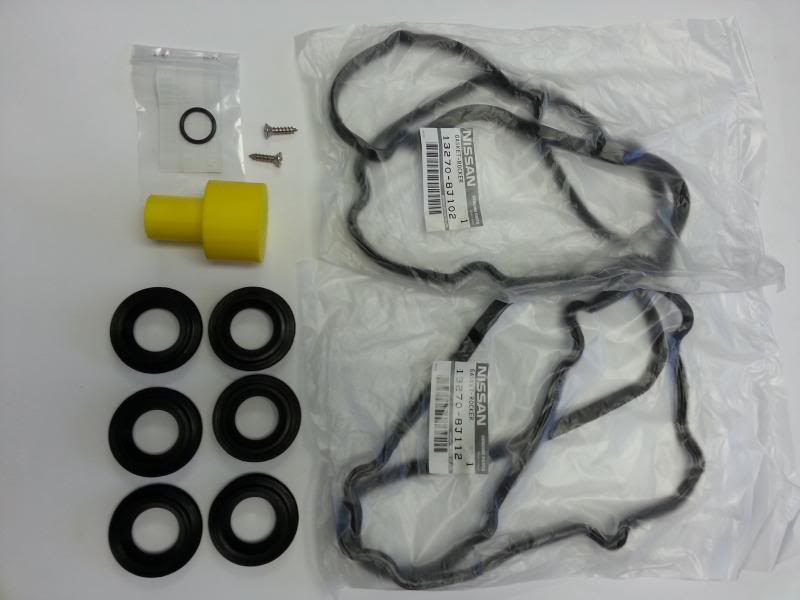

$120 for 6 Grommets (O-ring gasket) and OEM valve cover gaskets (both side), PCV Valve o-ring

Instructions

1- THIS IS A SIMPLE HOLE SAW (SIZE 1 7/8 INCH) THAT YOU CAN BUY FROM MOST HARDWARE STORE. WE GOT OURS FROM ACE HARDWARE AND IT WAS $7-11

Name: IMG_4589.jpg Views: 592 Size: 181.8 KB

2- THIS IS HOW YOUR VALVE COVER LOOKS WHEN YOU TAKE IT OFF OF YOUR ENGINE

Name: IMG_3.jpg Views: 735 Size: 149.7 KB

NOTE PICTURE SHOWN MOST LEFT SPARK PLUG HOLE DRILLED.

3- WARNING “PLEASE DO NOT REMOVE BAFFLE PLATE” WARNING

Name: IMG_4.jpg Views: 648 Size: 142.1 KB

4- POSITION THE HOLE-SAW CONCENTRIC TO SPARKPLUG HOLE AND DRILL BAFFLE PLATE SLOWLY AND CAREFULLY.

Name: IMG_4590.jpg Views: 623 Size: 72.6 KB

Name: IMG_4591.jpg Views: 607 Size: 65.9 KB

5- YOU WILL ONLY NEED TO DRILL JUST ENOUGH TO DRILL THROUGH THE BAFFLE PLATE (WE CLEANED UP ALL THE DEBRIS TO SHOW YOU CLEAR PICTURE DRILL ALL 6 POSITIONS AND CLEAN OFF DEBRIS WHEN DONE.

Name: IMG_4607.jpg Views: 562 Size: 81.7 KB

Name: IMG_4608.jpg Views: 605 Size: 119.6 KB

6- NOW YOU WILL BE ABLE TO POP OUT THE OLD O-RING GROMMET OUT OF THE VALVE COVER. PLEASE REPEAT 6 TIMES.

Name: IMG_8.jpg Views: 682 Size: 120.1 KB

7- THIS IS WHAT IT WOULD LOOK LIKE WITH THE O-RING GROMMET OUT

Name: IMG_4607.jpg Views: 562 Size: 81.7 KB

8- USE BLACK RTV SILICONE ON TOP SIDE OF THE NEW O-RING GROMMET (WE USED CLEAR ON OUR DEMO PICTURE SO YOU CAN SEE BETTER)

Name: IMG_10.jpg Views: 701 Size: 128.7 KB

9- PLACE THE NEW O-RING GASKET IN TO THE HOLE. NOW YOU ARE READY TO RE-INSTALL YOUR VALVE COVER GASKET TO YOUR ENGINE.

Name: IMG_4609.jpg Views: 594 Size: 97.9 KB

Name: IMG_4610.jpg Views: 600 Size: 106.5 KB
