NOTE: This thread covers remedying the timing chain rattle on 1998 and 1995 model VQ30DE engines. There are differences between those engine years that require a different approach.

If you have a 96-99 model VQ30DE, a new tensioner and gasket can be installed without removing the timing cover and replacing the guide. The tensioner can be accessed via the access panel door on the lower left side of the timing cover using a 10mm socket wrench.

Only the 95 model engine required timing cover removal to replace the guide with the updated version.

Today I performed a Timing Chain Tensioner transplant from a 99 model I30 to the 98 Maxima. The 98 Maxima had the typical morning timing chain clatter noise that comes from a worn tensioner piston inner seal and leaking valves.

The 99 I30 received a new Tensioner and Gasket sometime in 2012. This used tensioner has approximately 40,000 miles. However, this old tensioner has a gasket. I will find the gasket part number and report back more information on how to perform a quick tensioner transplant.

Meanwhile, the 98 Maxima appears to be getting along very well with the replacement tensioner. The engine runs smoothly and quietly now. Hopefully, when I start it at 5 AM tomorrow morning, the usual clatter will be gone.

Here’s a picture of the replacement tensioner with a gasket on the left with a regular OEM tensioner from a 97 model SE “junkyard vehicle” on the right.

The results are almost unbelievable. After sitting all night, there was no morning clatter or valve train noise today at 6 AM. This must be how it sounded when it was new.

TSB Notes

• Make: NISSAN Model: MAXIMA Year: 1999
• Service Bulletin Number: NTB00054 Bulletin Sequence Number: 139 Date of Bulletin: 06/00
• NHTSA Item Number: SB613977
  Component: ENGINE: TIMING GEAR AND CHAIN
  Summary: VEHICLES BUILT BEFORE JN1CA31D1YT746029 MAY EXHIBIT A ENGINE TIMING CHAIN NOISE.

—————————————————————————————-

Note that I just ordered a tensioner for a 95 model with two gaskets and four bolts from CourtesyParts for the 99 models that is running a 95 model engine. The 95 models use a different tensioner.

The Tensioner I ordered for the 95 model engine is 13091-31U26 for $83.84 at CourtesyParts. The only picture I see of this part contains a guide and the tensioner. If that tensioner requires a new guide, then I’m stuck with removing the timing cover. I need to see how this 95 part is going to work before I can recommend it.

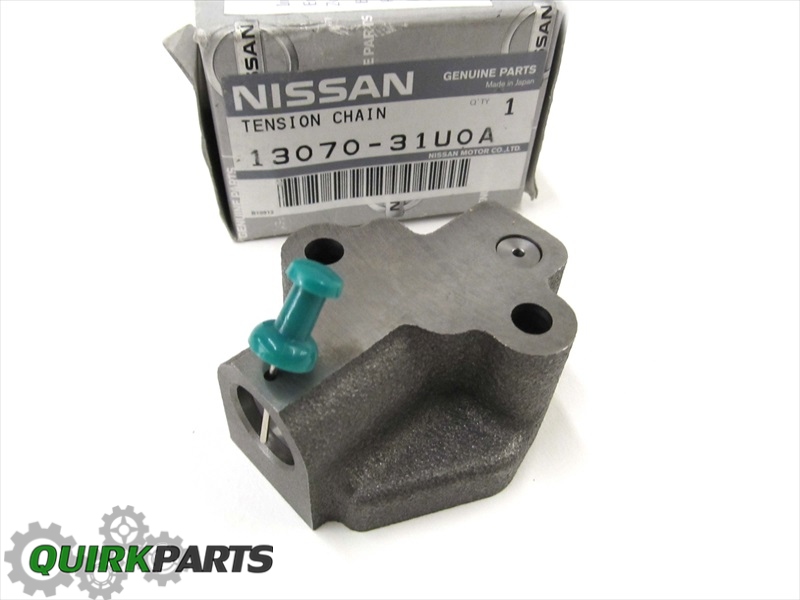

Here’s a picture below for engines built from 1/96 +.

For an I30, I see OIP has the part listed for $61.62.

This tensioner looks like the ones I’ve pulled from a 97, 98, and 99 model engine.

Somehow I think the gasket seals the drain vent to hold oil inside the chamber for long periods of time to reduce the amount of morning clatter.

—————————————————————————————-

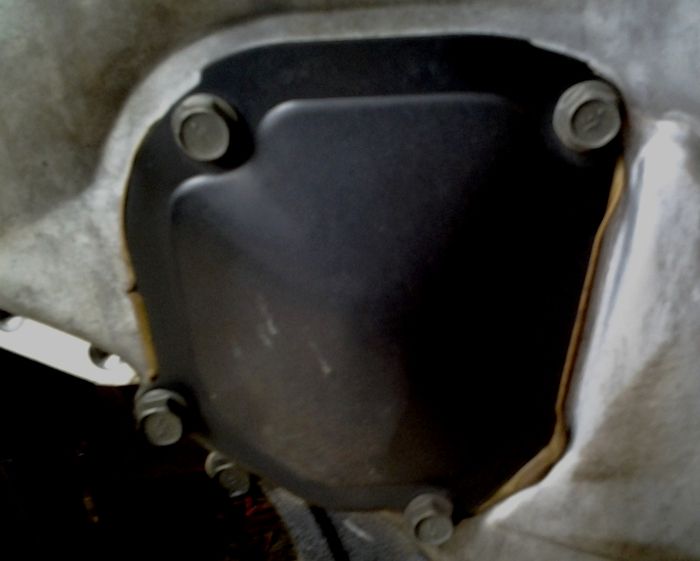

The tensioner sits behind this timing cover access panel. The access panel is held in place with four 10mm bolts.

Note: ALL bolts associated with timing chain tensioner replacement are 10mm.

Remove the Power Steering return hose from the reservoir and loosen the A/C line bracket. The idea is to get the PS hose and A/C line out of the way to provide more room for working with the tensioner.

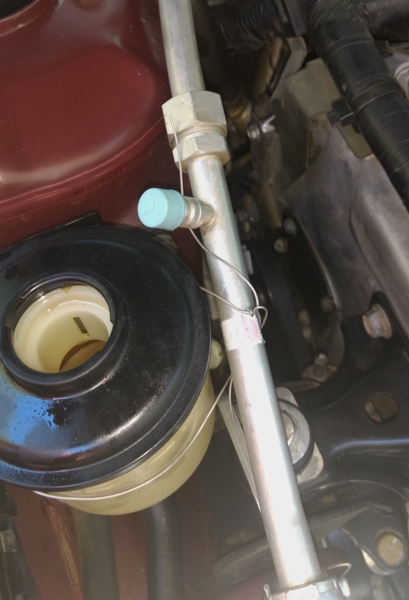

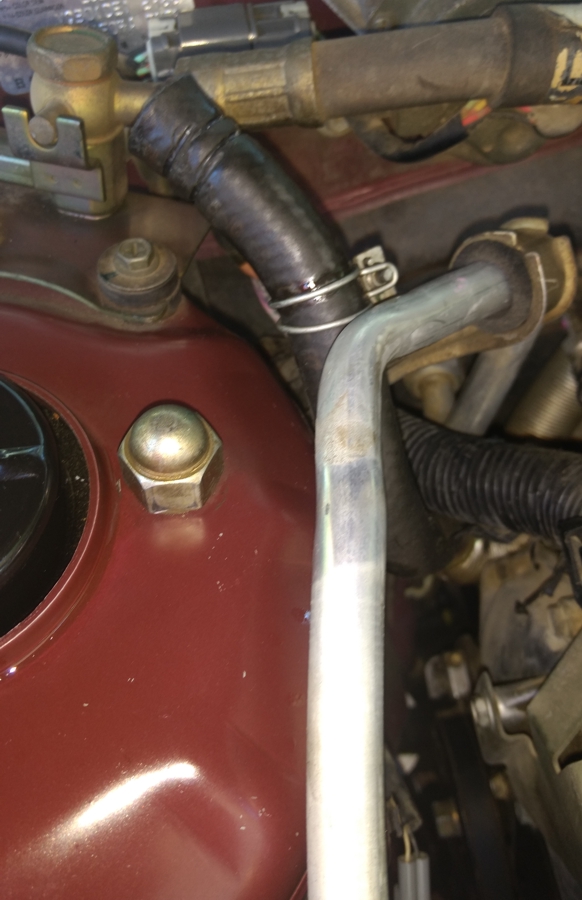

Mechanics wire came in handy to secure the A/C line to the PS fluid reservoir. You can see the tensioner cover in the lower right center of this picture.

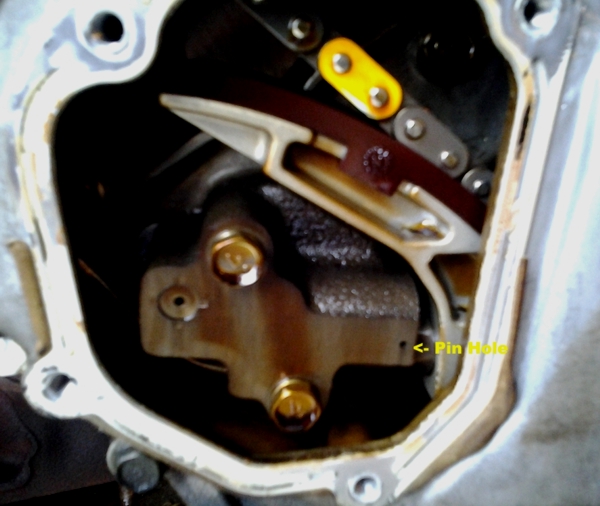

When the tensioner access panel has been removed, you can see the tensioner and the two 10mm bolts that hold it to the engine.

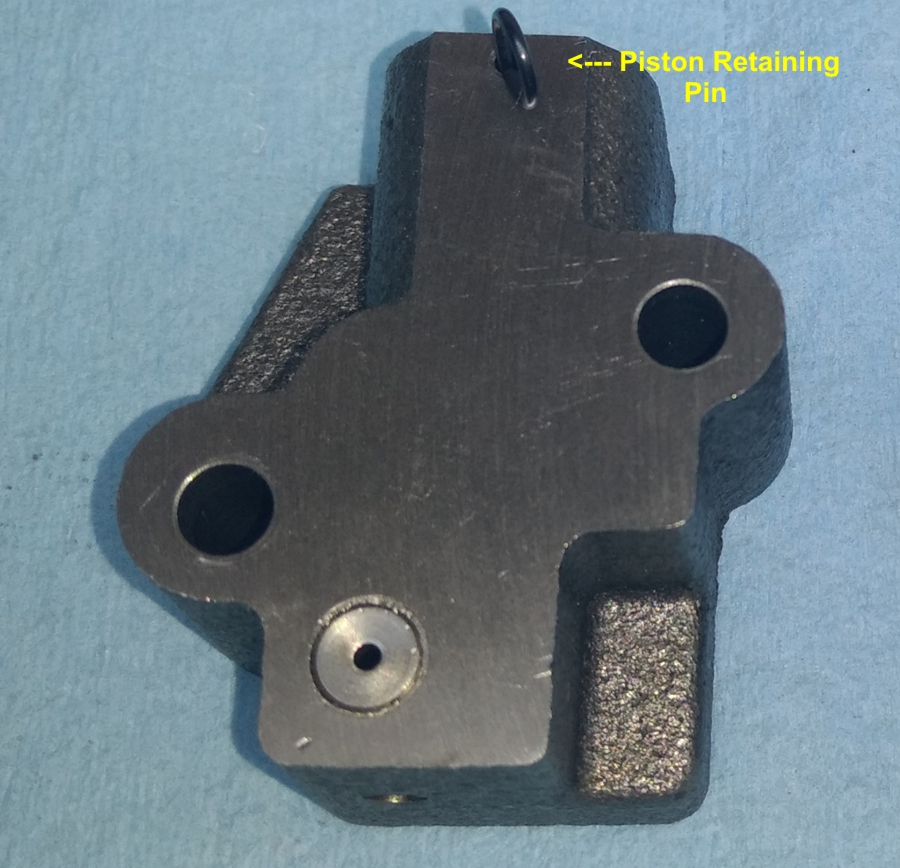

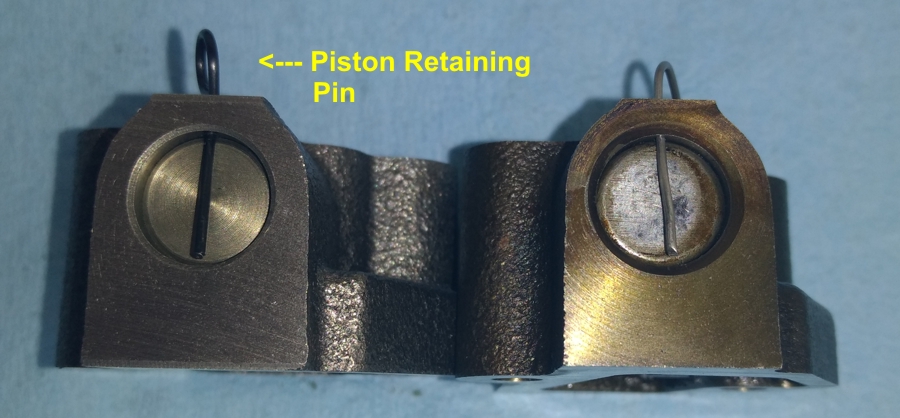

A close-up of the tensioner shows the piston is held in position for installation by the retaining pin. I used some mechanics wire to make a pin for an old tensioner that kept for example purposes.

Here’s another picture of the retaining pin. The pin must be left in the tensioner until after it has been bolted down. The final step in the installation before closing the access door is to pull the retaining pin.

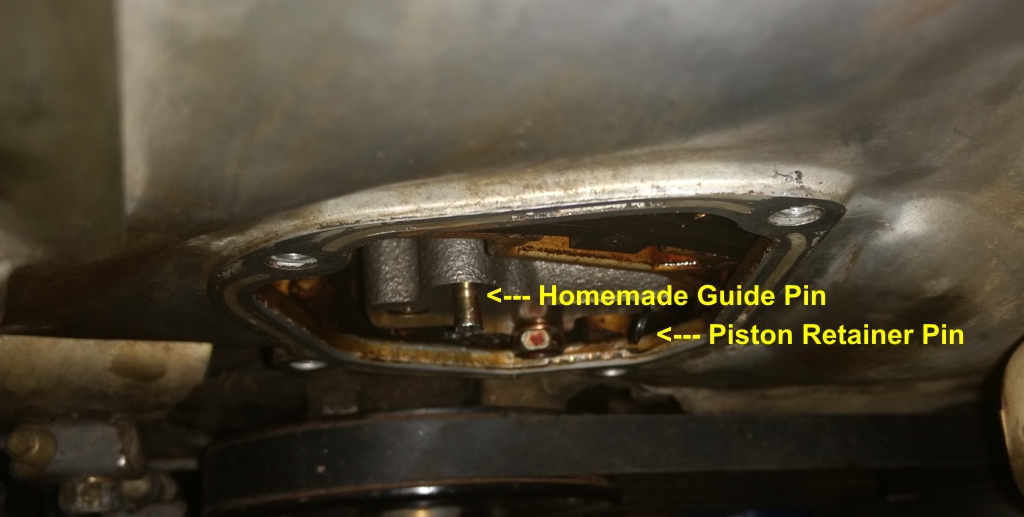

To get the tensioner to align properly over the bolt holes, I cut off the head of an extra bold to make an installation guide pin. I turned the guide pin into the block just enough for me to hang the tensioner on it to get the lower bolt started. Once I had the lower bolt started, I removed the guide pin and installed the upper bolt.

To get the access door properly aligned over the timing cover when the edge was covered in RTV, I used some extra 10mm bolts and made two additional guide pins. Once the access door was in position, I installed two cover bolts, then removed the guide pins and finished installing the remaining two bolts.

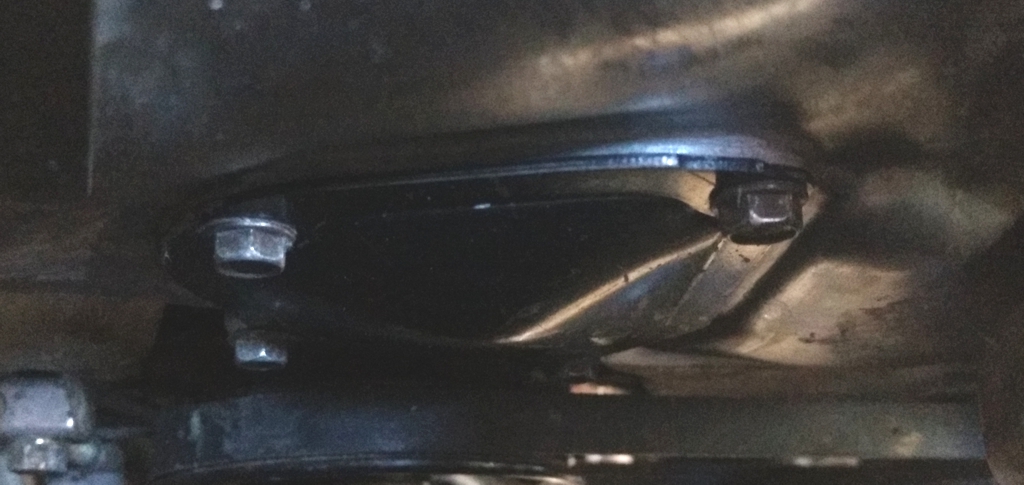

Here’s a picture of the access door at the end of the operation. You can see that I used Permatex Ultra Grey RTV.

————–

The parts arrived from Courtesy Nissan today. Now that was a Nissan Fast order. It looks like I have everything I need to work on the 99 models (with the 95 engine) this weekend.

So I purchased the tensioner for a 95 model that comes with a guide. I really do not want to use the guide. It was just over 3 years ago that I had the timing cover off of that engine and examined the guides. That engine only had 82,000 miles at the time. I will get a mileage reading this weekend when the car returns. That engine easily has under 150,000 miles.

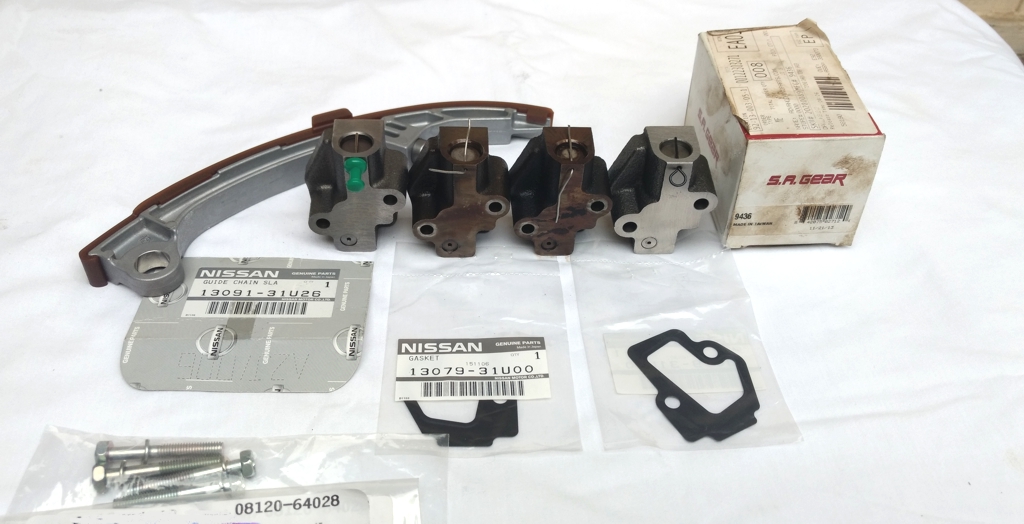

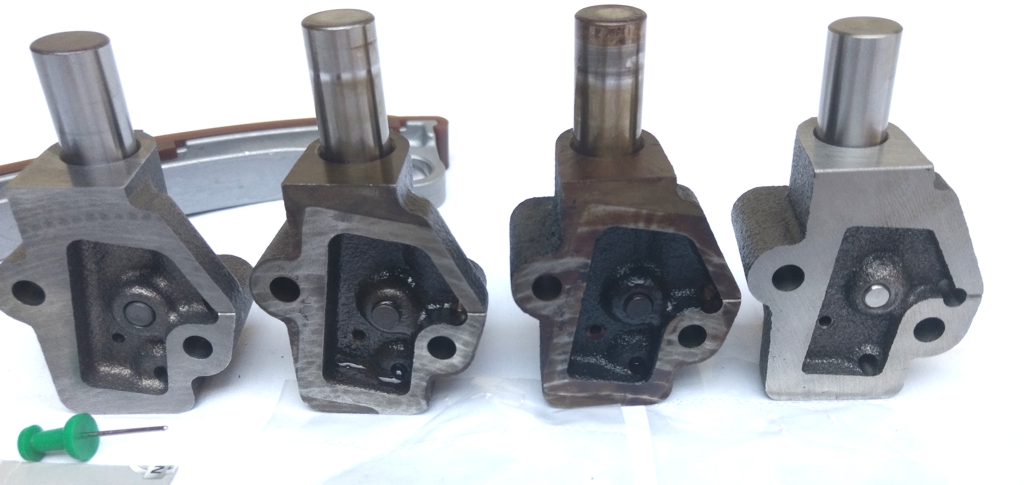

The new OEM tensioner is on the left. The two tensioners in the middle are from a 97 (salvage yard car) and the 98 models. The tensioner on the right is an SA Gear that I purchased over 3 years ago to go in the 99 models. The guy that did the engine installation and changed the water pump did not install it. While it looks like the OEM, it doesn’t have the same tight/precise feel as the OEM. I can tell the OEM has been built to some very exacting standards. So I don’t know if I will ever use the SA Gear guide.

The gaskets are the right parts exactly. The bolts are correct. I ordered an extra set of bolts and gaskets. I suspect the secret to success here is to always include the OEM gasket with a new tensioner.

Here’s a close-up of the tensioner back sides below. Again the new OEM is on the left with the SA Gear on the right.

The piston on the new OEM has a very tight and precise fit. There is no piston wobble or shake with the new OEM part. I sure hope I can use it on the 95 model engine.

The SA Gear part (far right) is listed for 95-04 models with both 3.0 and 3.5 engines. I call the SA Gear part a “generic aftermarket” tensioner.

Here’s a video of the 99 Model (95 Engine) before the new tensioner. Yeah it sounds like a diesel in the morning.

The 98 sounded like this before the tensioner upgrade.

Here’s a video of the 98 model after the new tensioner and gasket installation. The 99 model will sound like then when I finish the upgrade. This engine has approximately 237,000 miles.

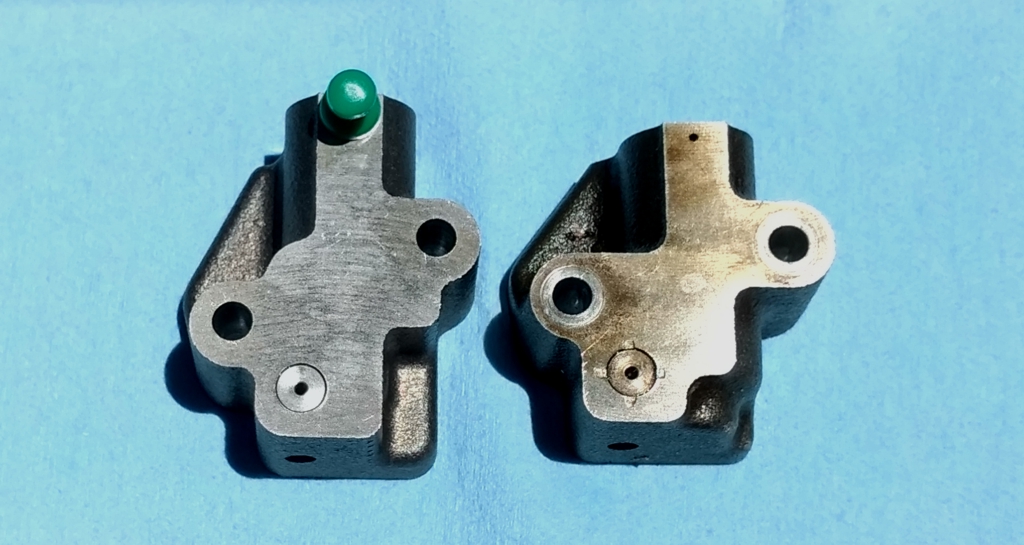

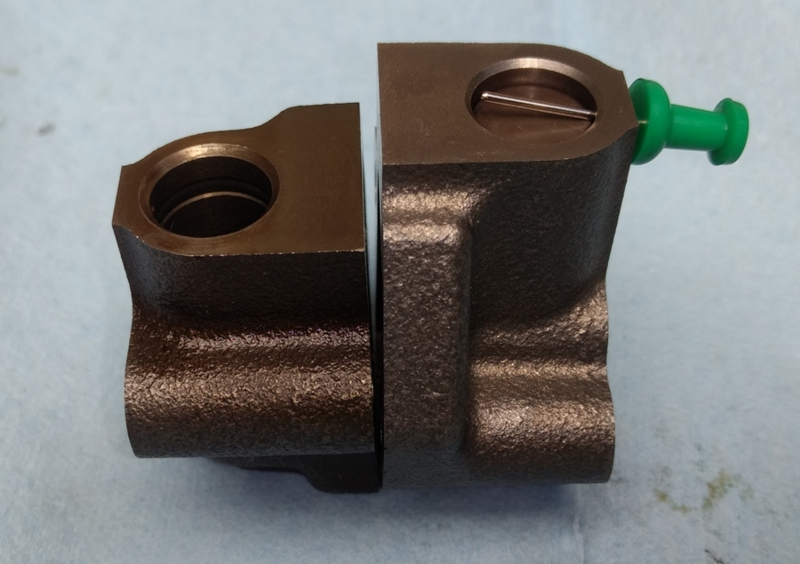

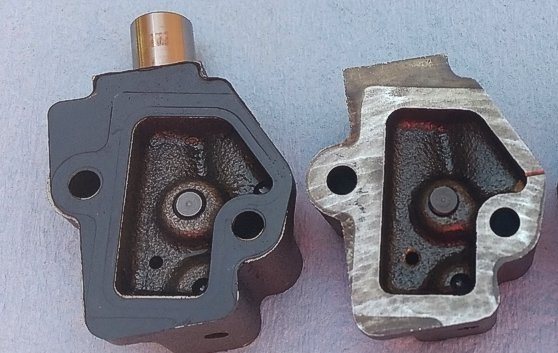

Here’s a picture of the old 95 model tensioner (left) compared to the new (right). I like the new design.

Here’s picture with the new tensioner on the left and the old on the right.

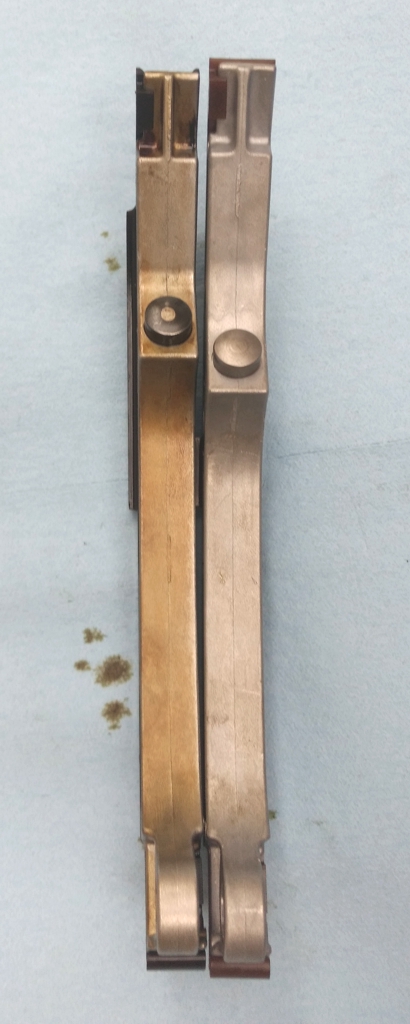

Side-by-side comparison of old 95 model guide compared to the new replacement.

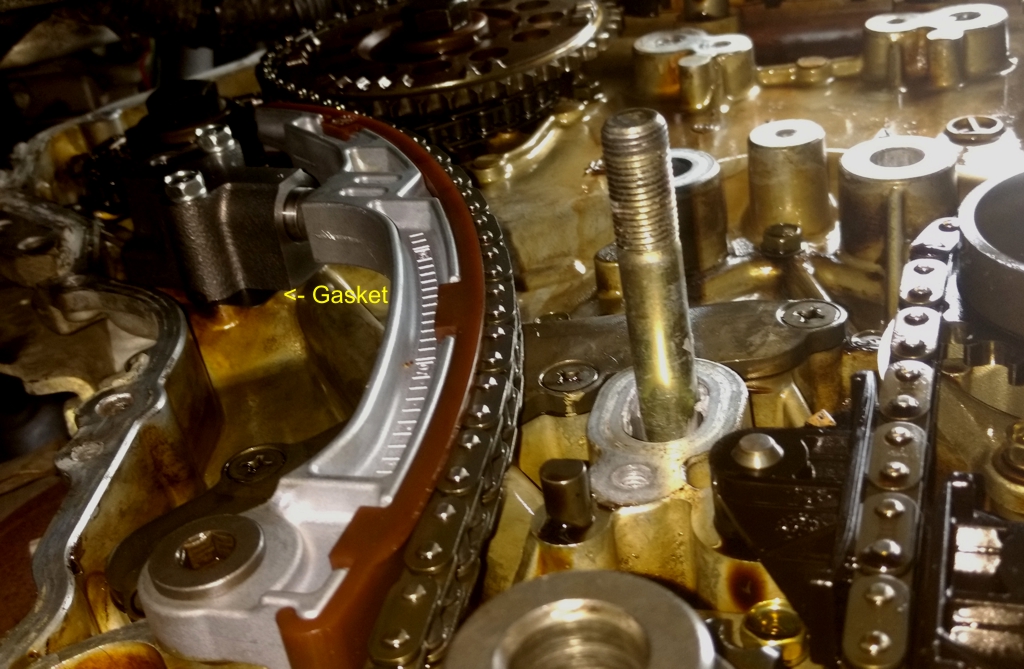

The new tensioner, bolts, gasket, and guide installed.

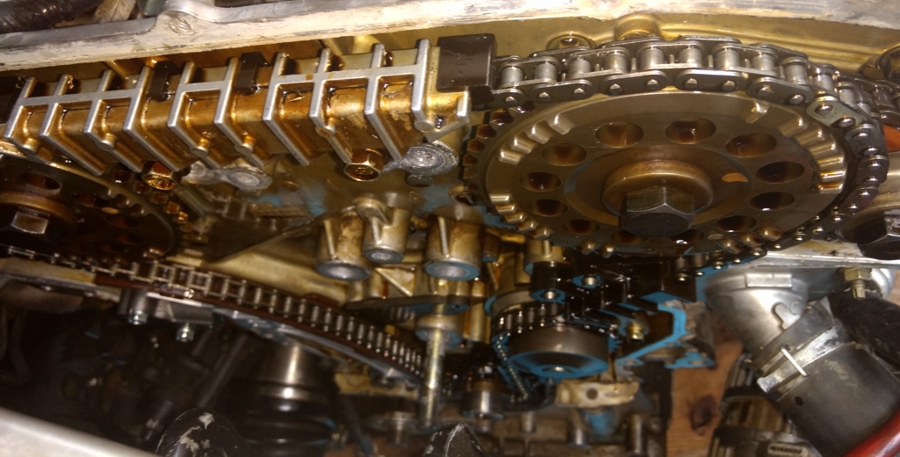

Based on the chain health from the picture below, I think the chain and engine will outlast the rest of the car.

The car (body) now has over 210,000 miles. It looks like a low wear engine.

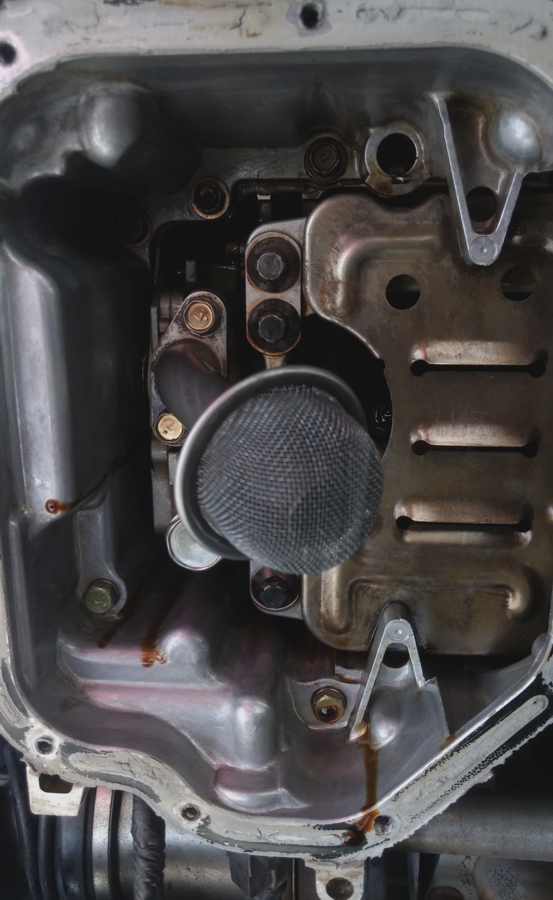

No oil sludge in the upper oil pan parts.

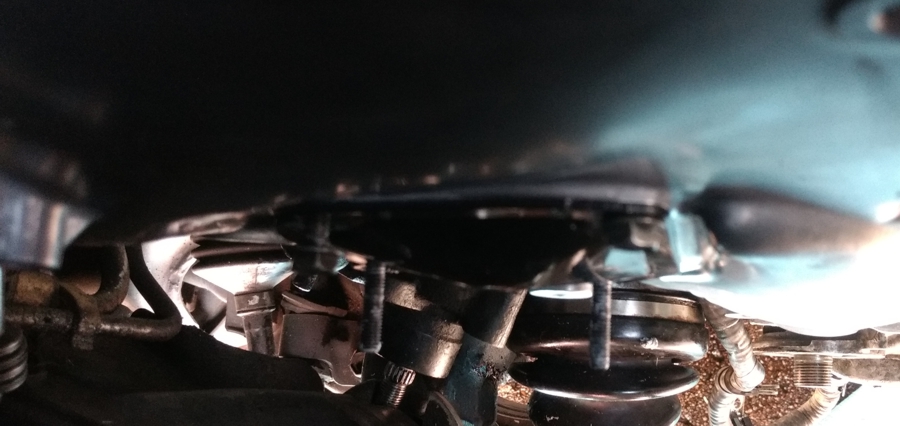

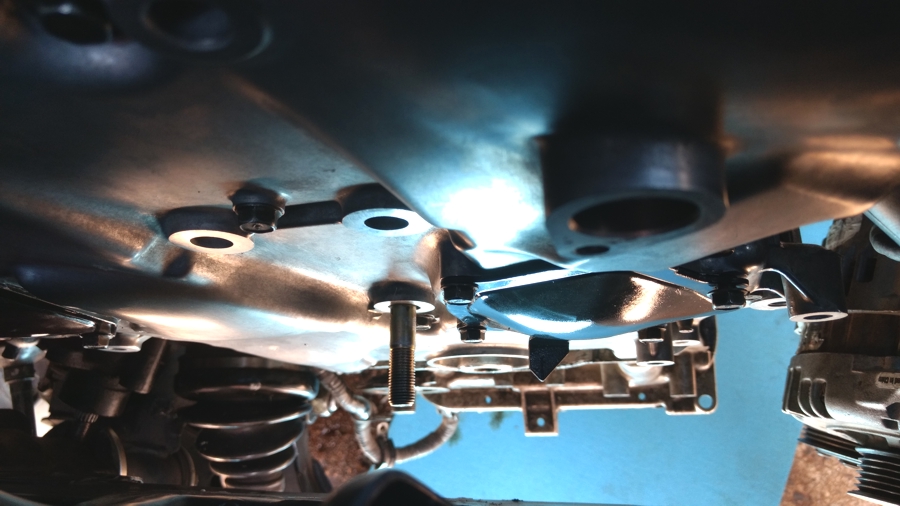

I used the M6 -1.00 x 31 mm automotive stud bolts from Ace Hardware as guide pins to hang the Timing Cover and access doors today. Here’s some pictures from today’s work below.

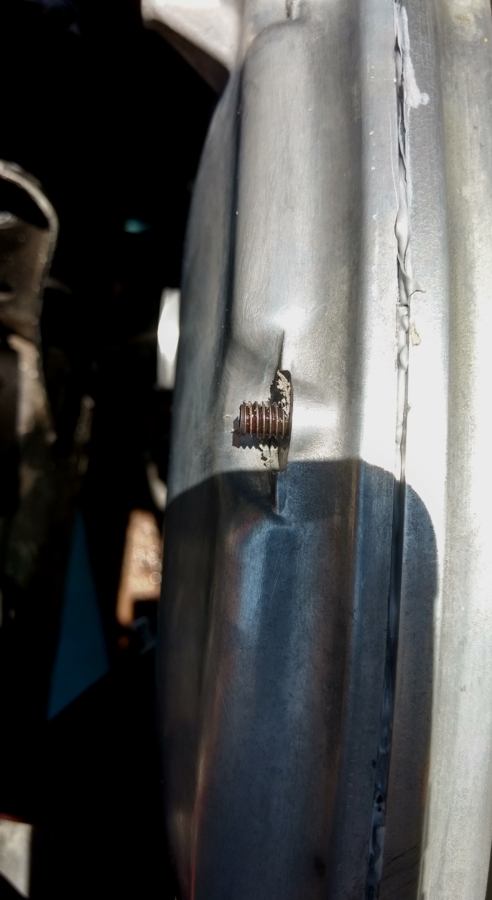

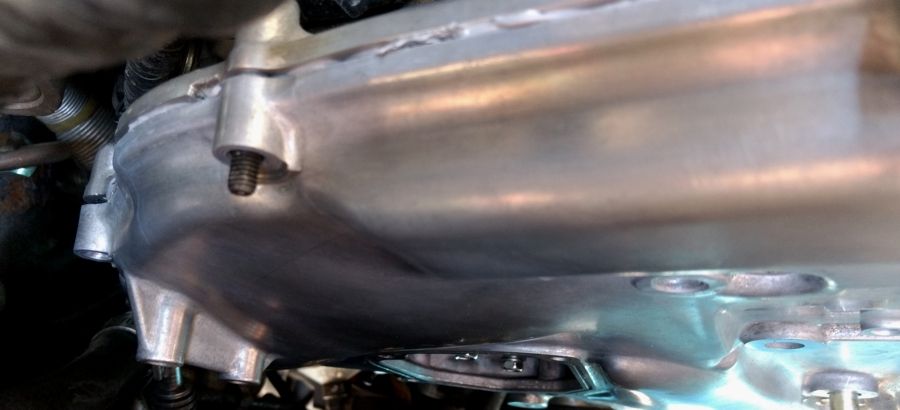

Another picture of using a stud bolt as a guide pin to hang the timing cover.

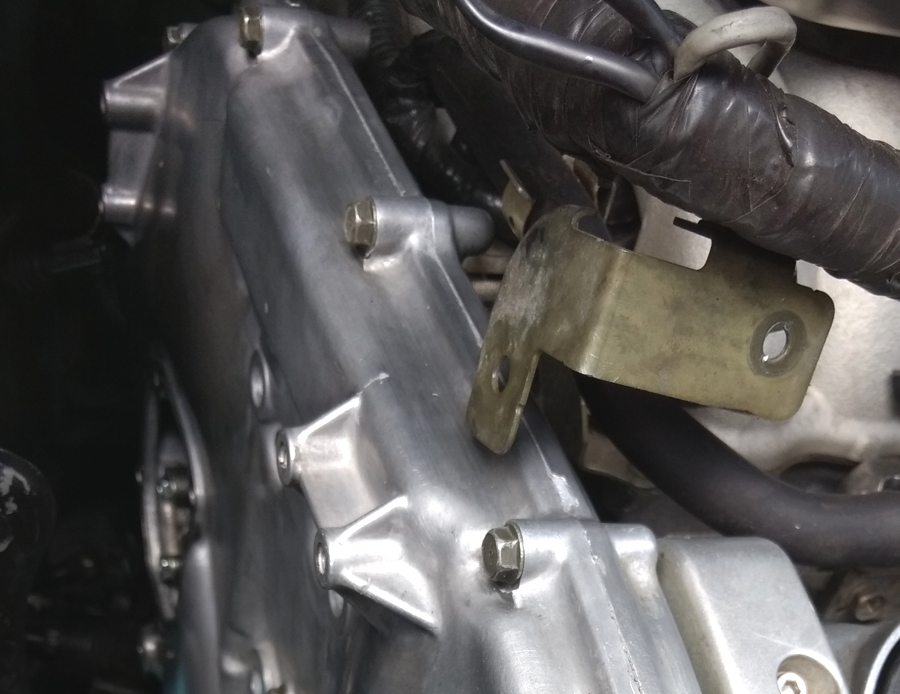

Removed the stud bolts and then used the regular 10 mm TC bolts.

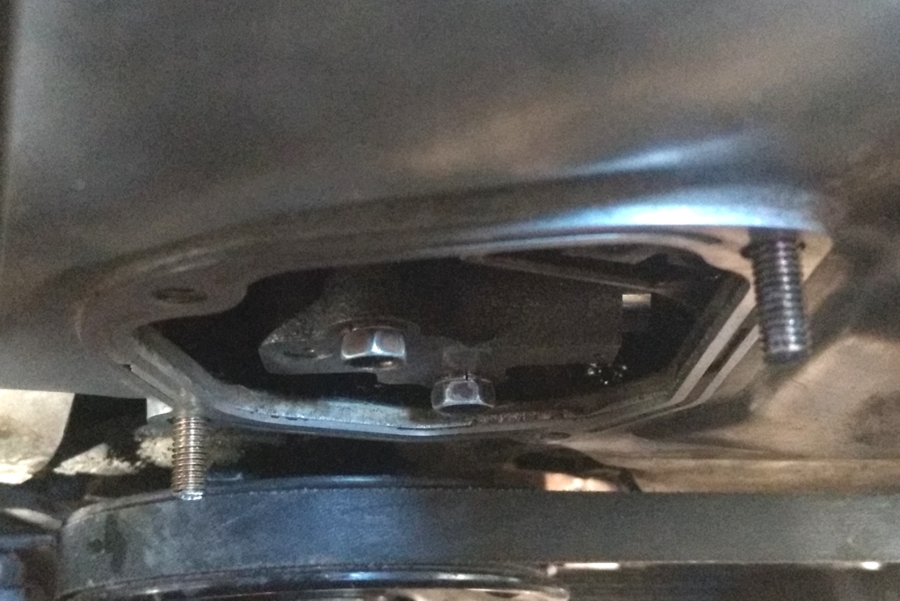

Using stud bolts as guide pins for installing the access doors.

Here’s a picture of the water pump access door after installation. Note that I did not completely remove the alternator or A/C compressor for this operation. I used some wire to suspend the compressor so it would not dangle by the hoses. The alternator is resting on the compressor.

The upper oil pan has been released but not completely removed in this picture. I reinstalled the passenger side engine mount so the engine would be held up by at least two engine mounts before I removed the center cross-member to remove the upper oil pan.

Started the engine this evening. After the expected new tensioner noises that sound like a train clattering down the tracks, all chain and valve system noises stopped. You’ve got to hold the RPM at 2,500 for about 10 minutes after the initial warm up to let the oil circulate through the tensioner system for the system to get quiet. This is a very different running and sounding engine now.

I will make a “cold start” video tomorrow morning and upload it to youtube.

I can’t recall having a 4th gen without some amount of clatter. It almost seems weird.

Here’s the before and after videos from the 99 (95 model engine) so show the difference made by replacing the tensioner, guide, and using the gasket as recommended in the TSB.

Before

After
